Mni ITX NAS Motherboard 8 Bay i5 8265U, 17 x 17 cm PC Mainboard mit 2X 2.5GbE LAN, 2 x DDR4 Slot, 2 x NVMe, 1x PCI-Ex4, Support VT-x/VT-d, HD+DP 4K, Barebone Fiche Technique et Prix au Maroc

Product Description

8 × SATA 3.0 Slots 1 × PCIe x4 Slot (PCIe 3.0 x2) 2 × SO-DIMM DDR4 RAM-Slots 2 × M.2 2280 NVMe SSD-Slots

Excellentes performances de dissipation thermique

Cette carte mère bénéficie d’une conception thermique multicouche comprenant un ventilateur actif, de larges dissipateurs thermiques en aluminium et un système de refroidissement dédié aux composants critiques. Elle assure ainsi des températures de fonctionnement stables même sous forte charge et en fonctionnement continu prolongé, améliorant considérablement la fiabilité et la durée de vie du système.

CPU Core i5 8265U ES Version Memory 2 × SO-DIMM DDR4 RAM slots, up to 64GB (compatible with 2133/2400/2666/3200MHz) Storage 2 × M.2 2280 NVMe SSD slots (PCIe 3.0 x2), 8 × SATA 3.0 slots, 1 × TF card slot PCIe Slot 1 × PCIe x4 slot (PCIe 3.0 x2) Network Controller 2 × i226-V 2.5GbE LAN Display Ports HD 4K@24Hz + DP 4K@60Hz USB 1 × USB 3.0, 3 × USB 2.0, 2 × internal USB 2.0 ports for system boot or USB encryption Internal Headers USB 3.0 header, F_USB header, COM header, GPIO header Size Mini ITX 17 × 17 cm Operating Systems Supports Win 10/11/Server, PVE, ESXi, Linux, TrueNAS, unRAID, OMV, and other open-source systems

NAS Motherboard

Add To Basket

Customer Reviews

—

5.0 out of 5 stars 1

—

—
Price

—

—

—

€333.30€333.30

CPU

W680

N100

Core i7 1165G7

N150

Memory

4x U-DIMM DDR5 slots, Max 128G

1 x SODIMM DDR5 Slot,Max 32G

2 x SODIMM DDR4 Slot,Max 64G

1 x SODIMM DDR5 Slot,Max 48G

Storage

3× NVMe M.2 2280 slots

2 x M.2 2280 NVMe

2 x M.2 2280 NVMe

2 x M.2 2280 NVMe

PCIe Slot

2 x PCI-Ex16 slots

1x PCIe x1 slot

1 x PCI-Ex4 slot

1x PCIe x1 slot

Network Controller

1× 10GbE LAN + 2x 2.5GbE LAN

4 x i226-V 2.5 GBE LAN

4 x i226-V 2.5 GBE LAN

1× 10GbE LAN + 2x 2.5GbE LAN

USB

4x USB3.2 + 2 x USB2.0+Type c

4 x USB2.0

1x USB3.0 + 2 x USB2.0+Type c

1x USB3.2 + 2 x USB2.0+Type c

Power Supply

ATX 24pin + 8/8+4pin

ATX-24pin + ATX-4pin

ATX 24pin

ATX 4pin

Size

Mini ATX 24 × 24 cm

Mini ITX 17 × 17 cm

Mini ITX 17 × 17 cm

Mini ITX 17 × 17 cm

Display

2HD + 2DP + Type-C

HD + DP

HD + DP + Type-C

HD + DP

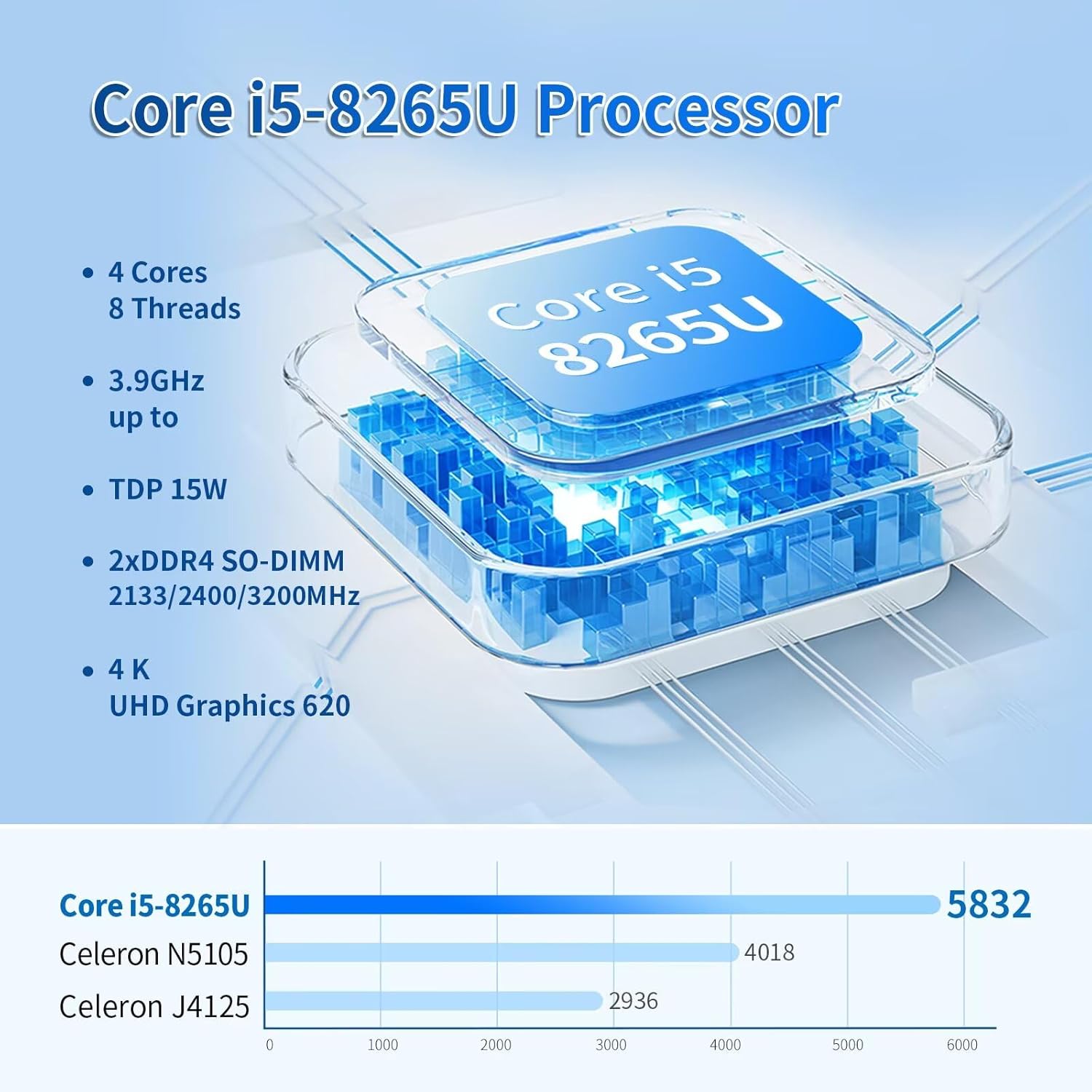

High-performance CPU – Equipped with 8th Gen Core i5 ES processor, featuring 4 cores and 8 threads. Outperforms N100/N150, perfect for multitasking and virtualization
Virtualization Ready – Supports VT-x and VT-d, with NIC/HDD passthrough. Ideal for NAS, router, and virtual machine environment, supports dual DDR4 SO-DIMM memory (up to 32GB per stick, 2133-3200MHz)
Rich Expansion Options – Includes 8 SATA3.0 ports (6 via ASM1166 + 2 native), 2 NVMe M.2 PCIe3.0 slots, and PCI-E x4 slot for additional expansion cards
Fast & Stable Networking – Dual i226-V 2.5G RJ45 LAN ports provide excellent compatibility and stable high-speed connections
Compact ITX Design – Standard 170 mm x 170 mm Mini-ITX board, , with bundled dual ball-bearing copper heat pipe cooler for efficient cooling
