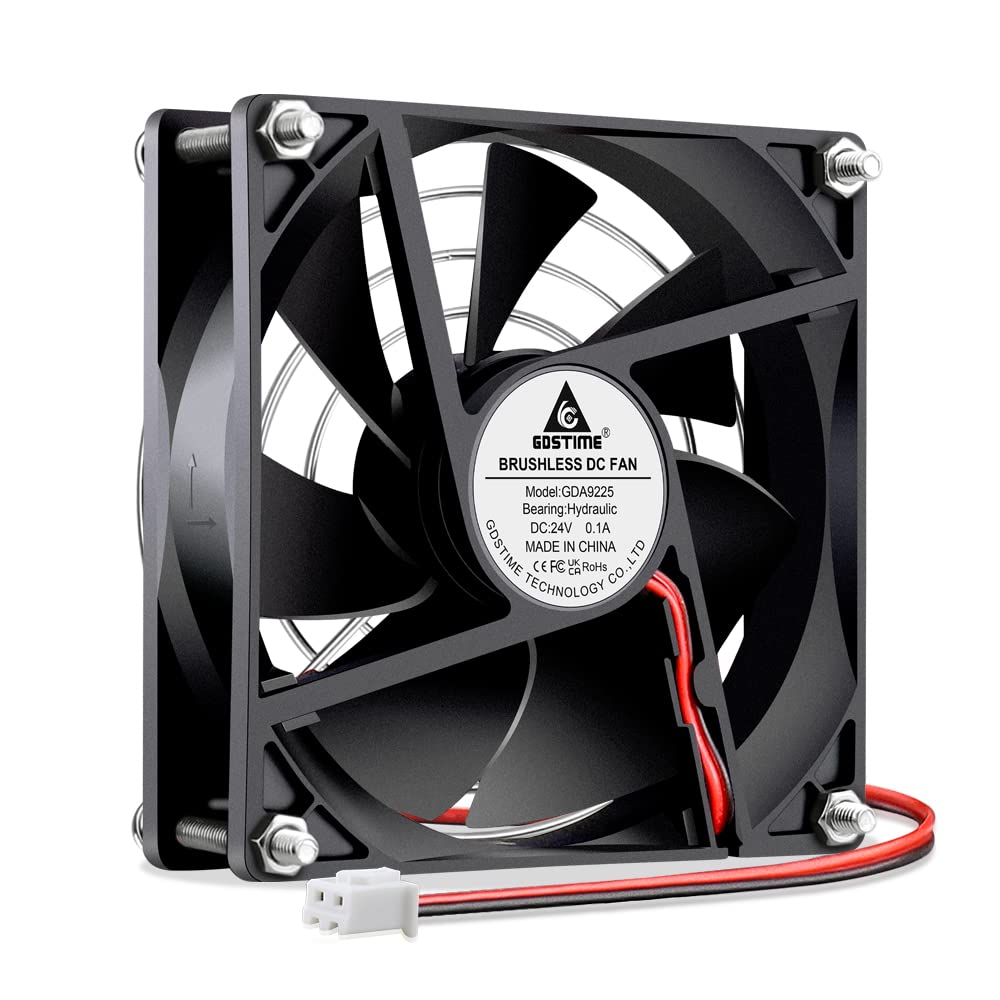

24V 92x25mm Computer Fan for TV Box, Game Console, Xbox Router Fiche Technique et Prix au Maroc

1. Applications:
9225 fan is widely used in computer, CPU, game console, power supply, inverters, projectors, welding machines, printing equipment, medical instruments, automotive electronics, industrial control equipment, home appliances, beauty equipment or various electronic components and components.
2. Operating Voltage Range:
24 volt cooling fan, the operating voltage range is 14 volts to 26 volts.
* Reminder: when the voltage exceeds up to 26 volts, it can also work, but not safe, and seriously affects the life of the fan.
3. Size:
Outer frame dimensions: 92 x 92 x 25 mm.
The distance from center to center between mounting holes is 82mm±0.3cm.

Product features:
Bearing Type: Sleeve
Rated Voltage: DC 24V
Operating Voltage Range: 14V to 26V
Rated Current: 0.1A
Rated power: 2.2 W
Rated Speed: 2000 PRM
Noise level: 37.9 dBA
Fan air flow: 62.3 CFM
Air Pressure: 0.21″ H2O
Net Weight: 70g
Connector: XH2.54-2Pin
Wire length: 300 mm.
Storage temperature: -40 to 80 degrees Celsius.
Operating temperature: -10-75 ℃
Lifespan: 35000H at 25°.

Package includes:
1 x DC fan (92 x 92 x 25 mm).
1 x 90mm Fan Grille
4 x Mounting Screws and Nuts

In order to save time, please carefully check the fan parameters before ordering, such as size, voltage, bearing type, etc. Thank you!
Date First Available ‏ : ‎ 2 Nov. 2020
Manufacturer ‏ : ‎ Gdstime
ASIN ‏ : ‎ B087JHB9BV
Item model number ‏ : ‎ GDA9225H24V2P-UK
Spare part availability duration ‏ : ‎ Spare part information not available or provided

The fan has a pure copper motor, high temperature resistant and energy efficient, which therefore has a lifespan of up to 35,000 hours at 25 °C. PBT frame and blades, the whole fan is rather solid, not easy to break, so has a long working time.
2000RPM high speed can offer 62.3CFM cool airflow, it is suitable for TV box, router, game console, computer, cabinet, projector, DVR cooling, also good for ventilation and fan replacement.

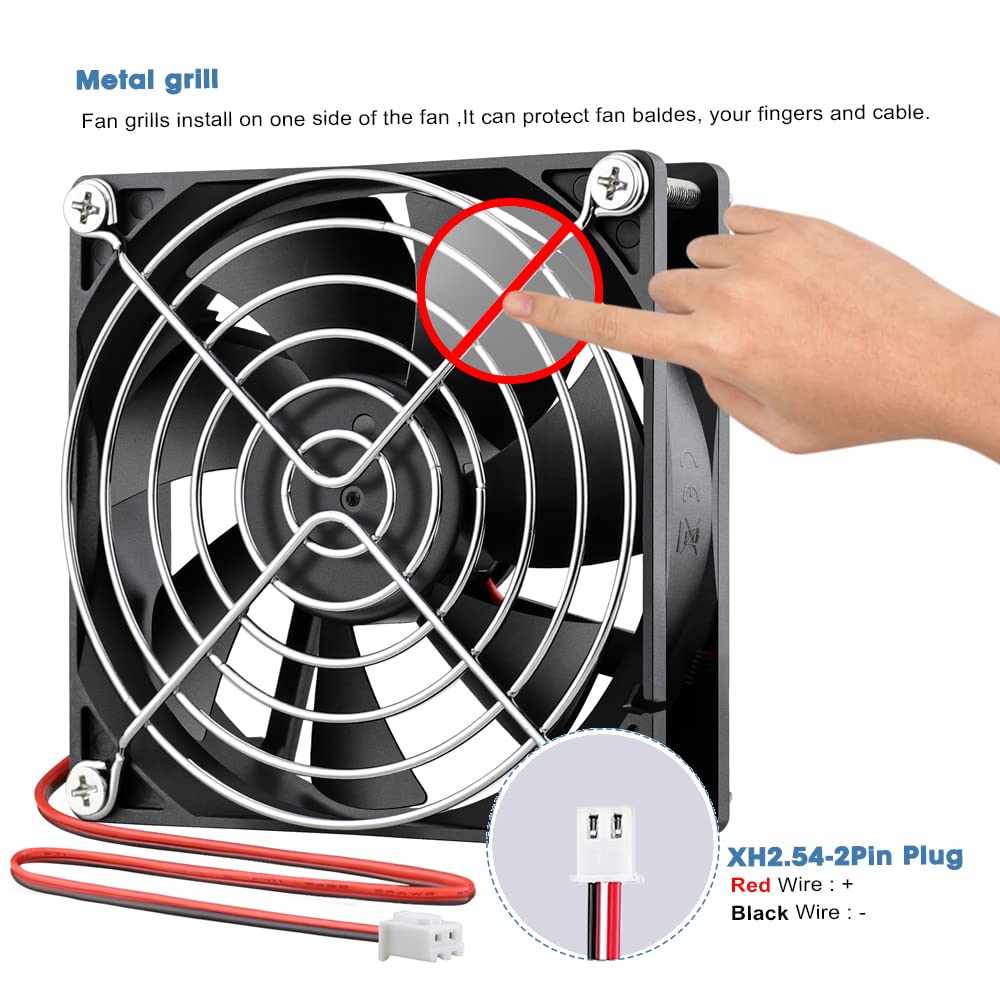

We offer a free metal fan grille to protect your fan, cable and fingers. Always make sure to use the fan safely. XH2.54 2 pin connector easy to install, the fan can be laid flat or standing, so the fan is easy and convenient, it is a good choice for fan replacement, or DIY ventilation cooling.
Specifications: Size: 92 x 92 x 25 mm. Voltage: DC 24V Speed: 2000 rpm. Airflow: 62.3 CFM Noise: 37.9dB Connector: XH2.54 2 Pin
Package includes 1 x 92mm fan, 1 x metal fan grille, mounting screws.
