Fiche Technique Transceiver Module, Transceiver Module 433MHz Bus Transceiver Module RF Serial Port UART DTU Transceiver Module for PTZ Camera au Maroc
1. Wireless Transmission: this transceiver module can transmit wirelessly over long distances, up to 500m in open areas, with a baud rate of 10kbit/s in the air
2. One by one and one to many: this module can take in a transparent communication one by one and one to several via the identification parameters
3. Synchronous change: Changing the baud rate of different serial ports will synchronously change the rate at which data is sent over the air
4. Maximum transmission power: the maximum transmission power of this serial port is 100mW/20dBm, the power can be adjusted to 10 levels, the port has a built-in MCU, can use this serial port to communicate with external devices
5. Application This module can be used for PTZ IP camera, LED controller, wireless instrument, identification system, etc. PCB

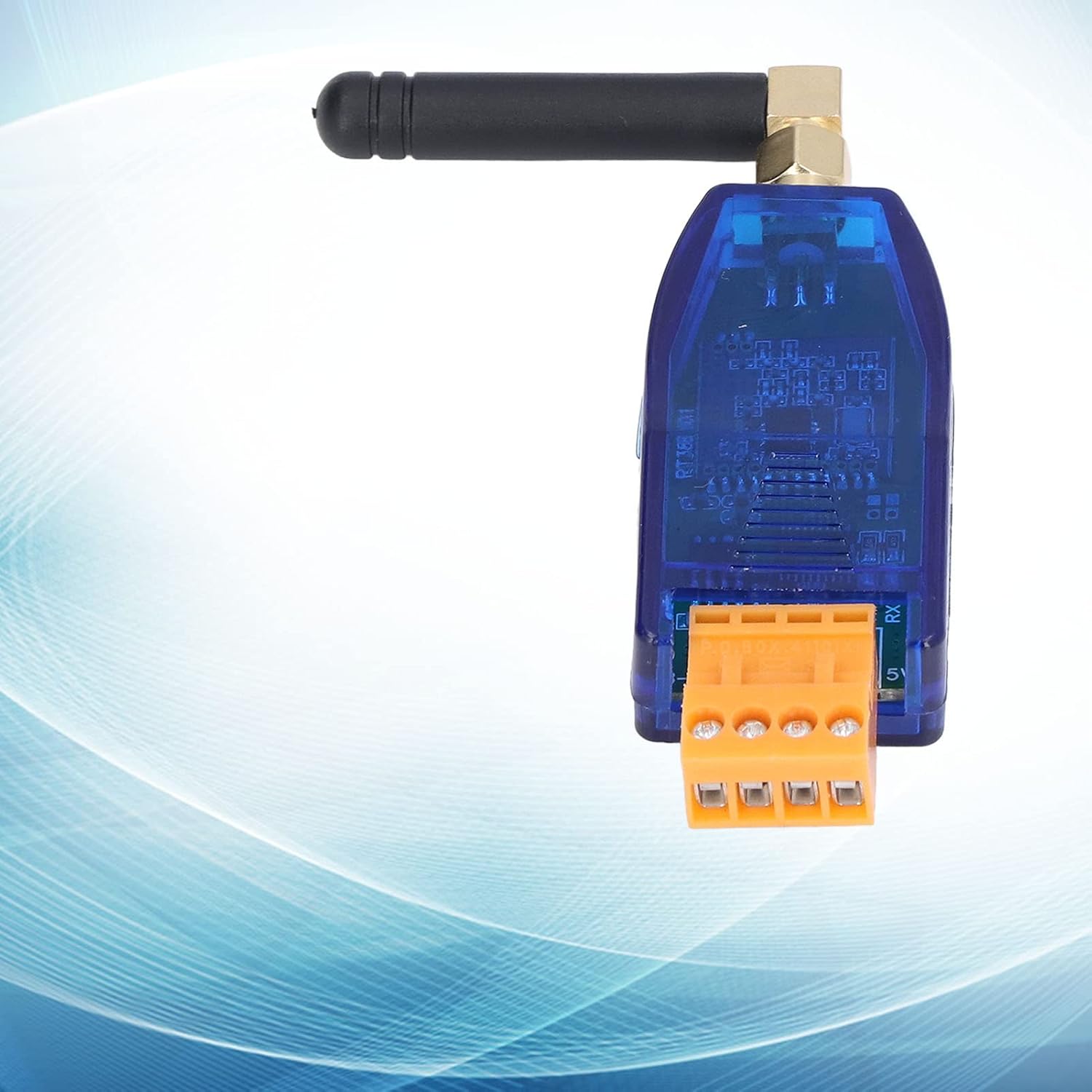

Model: RT38B01
Operating voltage: 4.5V-5.5V
Interface: (5V GND A+ B-)
Operating frequency: 433 MHz (up to 255 communication channels)
Transmission power: -40 to +20 dBm
Receiving sensitivity: -114dBm
Operating temperature: -25°C to +75°C
Transparent transmission baud rate: 1200, 2400, 4800, 9600 (default), 19200
Transmission distance to open ground: 500m
Application:
For PTZ IP Camera
For relay R4D3C32 N4D8B08 N4D8C12
Temperature sensor
LED Controller
Remote control, telemetry system
Wireless Instrument
Smart home, home automation
Access Control
Smart Meter
Recognition System
/>Data collection
Computer Devices
Smart Devices
Baby Monitoring System,
Thermometer
List
[Maximum Transmission Power]: The maximum transmission power of this serial port is 100mW/20dBm, the power can be adjusted to 10 levels, the port has built-in MCU, can use this serial port to communicate with external devices.
[One to one and one to many]: This module can take in transparent communication one by one and one to several via the identification parameters
[Wireless Transmission]: This transceiver module can transmit wirelessly over long distances, up to 500m in open areas, with a baud rate of 10kbps in air.
[Synchronous modification]: Changing the baud rate of different serial ports will synchronously change the rate at which data is sent over the air
[Wide Application] This module can be used for PTZ IP camera, LED controller, wireless instrument, identification system.
