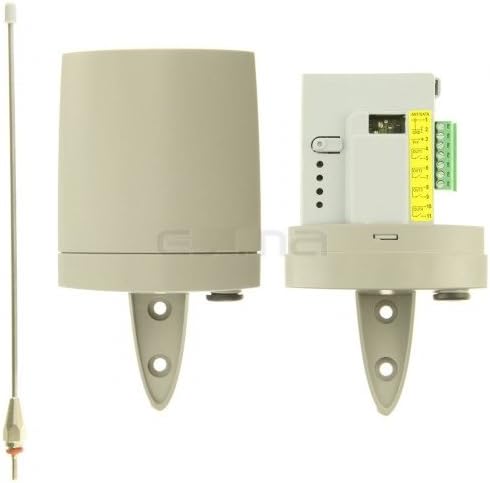

Fiche Technique V2 Wally2-U-433 2 Channel Outdoor Receiver for V2 Phoenix, PHOX, Handy, TSC, TRC, TXC 12-24V AC/DC Remote Controls au Maroc
Features: Number of Channels: 2 Works with Royal or Personal Pass series transmitters: the first remote to remember determines the operating mode; Royal or Personal Pass. Monostable, bistable or timer operating logic. Ability to select the type of contact (N.A or N.C.) of the relay 1 via a dedicated jumper J 1. The contact of relays 2-3-4 is N.A. type, to have a N.C. contact. It is necessary to make changes to the PCB hardware Personal Pass version: It is possible to store up to 1008 different codes with the self-learning mode Full memory warning: the receiver flashes 15 times Self-learning of radio-managed transmitters Management of the replacement transmitter It is possible to turn ROLLING CODE mode on or off Basic programming using the P1 button or programming advanced mation using the PROG2 (version 3.6 or newer) – WINPPCL programming device and software (version 5.0 or newer) – Frequency: 433.92 MHz – Power supply: 12 – 24 Vac / 12 – 36 Vdc – Relay contacts: 1 A / 30 Vdc – Temperature: -20 ÷ + 140 -16 mA @ 24 V DC (support by) Sensitivity? -103 dBm S/N > 17dB @ 100dBm m = 100% Size 132 x 26 x 74 mm Degree of protection IP55 Relay contacts Connecting board contacts for all four relays are normally open (N.O.) Type: For normally closed contact (N.C.) of the relay 1, move the jumper J 1 to position 2 (FIG. 1) For normally closed contact (N.C.) relays 2,3,4 short-circuit point A with point B and cut the track at point C (Fig. 2) the relay concerned.
Number of channels: 2 Monostable, bistable or timer operating logic
Can store up to 1008 different codes
Sequential storage of transmitters. Full memory warning. !
ROLLING CODE mode can be enabled or disabled. Plug-in terminal block.
Basic programming using the P1 button or advanced programming using the PROG2 programming device and WINPPCL software
Number of channels: 2 Monostable, bistable or timer operating logic
Can store up to 1008 different codes
Sequential storage of transmitters. Full memory warning. !
ROLLING CODE mode can be enabled or disabled. Plug-in terminal block.
Basic programming using the P1 button or advanced programming using the PROG2 programming device and WINPPCL software
Avis sur V2 Wally2-U-433 2 Channel Outdoor Receiver for V2 Phoenix, PHOX, Handy, TSC, TRC, TXC 12-24V AC/DC Remote Controls
Les acheteurs qui ont testé V2 Wally2-U-433 2 Channel Outdoor Receiver for V2 Phoenix, PHOX, Handy, TSC, TRC, TXC 12-24V AC/DC Remote Controls ont donné la note 4.5/5
vous pouvez lire tous les avis via ce lien
Le Prix V2 Wally2-U-433 2 Channel Outdoor Receiver for V2 Phoenix, PHOX, Handy, TSC, TRC, TXC 12-24V AC/DC Remote Controls au Maroc
Voici le prix pour acheter V2 Wally2-U-433 2 Channel Outdoor Receiver for V2 Phoenix, PHOX, Handy, TSC, TRC, TXC 12-24V AC/DC Remote Controls au Maroc
